Product Details:
Payment & Shipping Terms:
|
| Product Name: | Anti-rust Popular Good Rigidity Galvanized Steel Palisade Fence Panels | Keywords: | Galvanized Steel Palisade Fence Panels |
|---|---|---|---|
| Application: | Industrial Site,School,Sports Ground | ODM: | Acceptable |
| Top Point: | Triple Point, Single Point, Etc | H Post Size: | 100mmx55mm |
| Style: | "D" And"W" | Feature: | Anti-rust,good Rigidity |
| Surface Treatment: | Hot Dip Galvanized | Metal Type: | Steel |
| High Light: | anti rust galvanized steel palisade fencing,6ft galvanized steel palisade fencing,6ft d section palisade fencing |
||

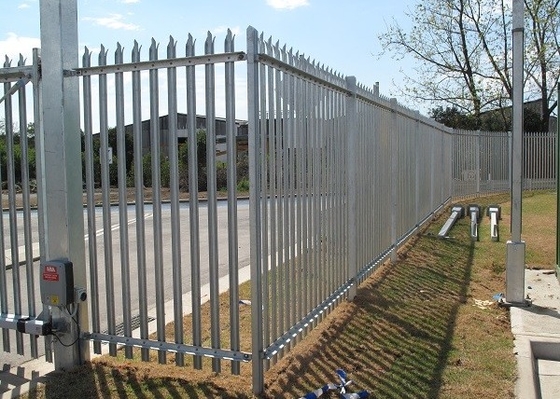

Anti-rust Popular good rigidity galvanized steel palisade fence panels
Product Introduction
Steel Palisade Fencing, also known as European Style Fencing. In some countries people may not familiar with this type of fencing system, but many countries have already been using it to replace the traditional brick walls and heavy wire mesh fence, making the living environment beautiful, comfortable and fresh. "Palisade" is also called "Security Defense assembled pales", it comes into people's life because the pursuit of a better environment.
The most common specifications for Steel Palisade Fencing is 1.8M high and 2.5M wide. Preservative treatment of this type of fencing includes: electrostatic galvanized, hot dip galvanized, polyester powder coated, PVC coated, etc. Powder coated and PVC coated Steel Palisade Fencing due to its low price and durability are very popular among customers. Durable, strong corrosion-resistant, long service life are some of the characteristics of this type of fencing system.
Specifications of galvanized steel palisade fence panels
Posts-100mm*55mm RSJ or102mm*44mm RSJ or127mm*76mm RSJ depending on height of the fence.Posts installed at 2.75m centers.
Rails-Generally 50mm*50mm*6mm RSA-2no per bay.3no per bay in more secure ares.
Pales-3mm thick D section or 2mm thick W section are the standard. The tops are generally trple pointed or rounded and notched.17no per 2.75m bay.
Fixings-M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts.M8 permacone nuts and bolts or 6mm antivandal rivets connect the pales to the rails.
Finish-Galvanized to B,S EN ISO1461 as standard. There is also a option for the fence to be Polyester Powder Coated to a color or you choice.
Heights-Standard height are 900mm(3ft),1.2m(4ft)1.5m(5ft),1.8m(6ft),2m(6ft6),2.1m(7ft),2.4m(8ft),2.75m(9ft),3m(10ft),3.6m(12ft).
Gates-Single Leaf,Double Leaf and Sliding Gates are all available made of measure.
| Height | Suggested Pale Thickness (mm) | Posts | Post Height | Rails | |
| Meters | 'D' Section | 'W' Section | |||
| 1.8 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.325m | 45 x 45 x 6 |
| 2.0 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.1 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.4 | 3.00 or 3.50 | 2.00 to 3.00 | 100 x 50 | 3.125m | 50 x 50 x 6 |
| 3.0 | 3.00 or 3.50 | 2.00 to 3.50 | 100 x 50 | 3.925m | 50 x 50 x 6 |
| 3.6 | 3.00 or 3.50 | 3.00 to 3.50 | 100 x 50 | 4.725m | 50 x 50 x 6 |
Features of galvanized steel palisade fence panels
Difficult to Climb
No fence is impossible to climb but palisade fencing makes it difficult for intruders due the sharp spikes on top. Having the lengthier panels together with electric fencing provides even more resistance.
Custom-made Gates
Swing, sliding and pedestrian gates can be custom-made to the clients specifications.
Affordable Security
palisade fencing in bulk, allowing us to provide you with the most competitive pricing available.
Everything under One Roof
stock a wide range of products including palisade fencing, screws, bolts, gates, electric fencing, steel paint, welding equipment, accessories and much more.
Applications of galvanized steel palisade fence panels
Palisade is available in varying specifications to suit a variety of commercial and industrial applications including:
Company Information
FAQ
1. What about warranty?
Customer satisfaction is our key concern. All fence can withstand 15 years’ corrosion resistance. We promise to reimburse or replace the products with defect immediately upon the confirmation of the problem.
2. Will you keep customers updated for status of their order?
Certainly. We will have photos taken as confirmation when the production finished and delivered by logistic department. These pictures will be forwarded to clients in advance.
3. Do you provide ODM/OEM service?
Yes, of course. Our production line allow to accept OEM service. Please discuss with us for your details.
