Product Details:
Payment & Shipping Terms:
|
| Name: | 6FT X 12FT Hot Dip Galvanized Chain Link Temporary Fencing Panels | Height: | 72'' 96'' |
|---|---|---|---|
| Width: | 96'' 120''144'' | Diameter: | 2.5mm, 3.0mm,3.2mm,3.5mm |
| Hole: | 2'' 2.5'' | Material: | Iron Wire And Pipe |
| Frame: | 1 5/8” OR 1 3/8” | Surface Finish: | Hot Dip Galvanized |
| Feature: | Easliy Assembled | Surface Treatment: | Galvanized, Pvc Coated |
| Frame Material: | Metal | Metal Type: | Steel,Iron |
| High Light: | 6ft tall chain link fence,steel 6ft tall chain link fence,12ft wide temporary fencing panels |
||
6FT X 12FT Hot Dip Galvanized Chain Link Temporary Fencing Panels
Temporary Fencing Panels Introduction:
It is also called mobile fence mesh, temporary police. Our temporary chain link fences are totally reached Australian standards, which all are hot-dipped galvanized. They are popular in Australia, American, England, We also can produce according to the buyer's details drawing for it.
Temporary Fencing Panels drawing :
Temporary Fencing Panels size:
|
Chain Link Temporary Fence Specification
|
||||
|
Material
|
Low carbon steel
|
|||
|
Surface Treatment
|
Hot dipped galvanized
|
|||
|
Fence height
|
4ft, 6ft, 8ft or customized size
|
|||
|
Fence length
|
10ft, 12ft, 14ft, or customized size
|
|||
|
Wire diameter
|
2.5mm, 2.7mm, 3mm, 3.5mm, 4mm, etc.
|
|||
|
Frame tube
|
O.D. 32mm, 33.4mm, 42mm, etc
|
|||
|
Cross brace tube
|
O.D. 25mm or 32mm, etc.
|
|||
|
Base size
|
610x590mm, 762x460mm, etc
|
|||
|
Chain link mesh size
|
50x50mm, 60x60mm, etc
|
|||
| Frame and middle pipe | Mesh size |
W ire diameter |
Surface Treatment |
Panel Width |
Height |
|
25x1.2/1.5mm 32x1.2/1.5mm |
50x50mm 70x70mm |
2.0mm 2.5mm 3.0mm 3.2mm 3.5mm 4.0mm |
Galvanized and PVC coated or hot dipped galvanized |
2.00m 2.50m 2.90m 3.65m |
1800mm 2000mm |
| 2100mm | |||||
| 2400mm |

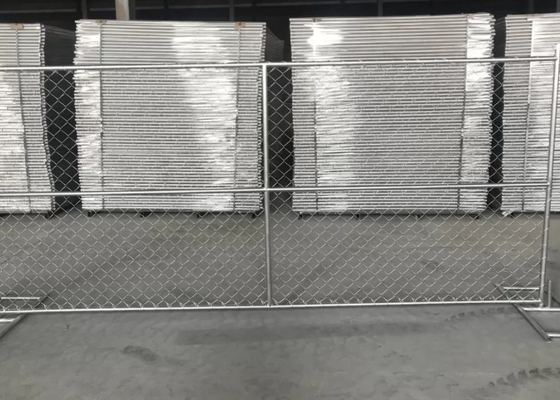

Temporary Fencing Panels detailed picture:
Temporary Fencing Panels production :
Application of Temporary Fencing Panels :
The temporary fence panel to secure construction sites and private property.
Temporary fencing panel of residential housing sites.
Temporary fencing panel and crowd control barriers for major public. events, sports, concerts, festivals, etc.
Temporary fence panel safety fencing for swimming pools.
Temporary Fencing Panels Packing:
1. rubber mat at the bottom of the pallet to avoid the pallet destroyed the panel.
2. metal corners to keep the pallet more strong and wood plate on the panel pallet.
3. the metal plate under the plastic bandage to a pressure for fence panel.
4. according your request
