Product Details:
Payment & Shipping Terms:
|
| Product Name: | Construction Stone Reinforcement Alkali Resistant Fiberglass Mesh | Application: | Building Materials/Wall Materials/filter Cloth |
|---|---|---|---|
| Color: | White,blue,yellow.orange,green Or Others | Length: | 50m-300m Or Customization |
| Characteristic:: | Anti-alkali | Mesh Opening: | 5x5mm 10x10mm 3x3mm |
| Raw Material: | Medium Alkali Or Alkali-free Glass Fiber | Weight: | 65-165g |
| Height: | 1000mm-2000mm | Usage: | High Temperature Resistant Fabric |
| Highlight: | Alkali Resistant Reinforcement Fiberglass mesh,Reinforcement Fiberglass Mesh 50m,alkali resistant reinforcing mesh 300m |
||

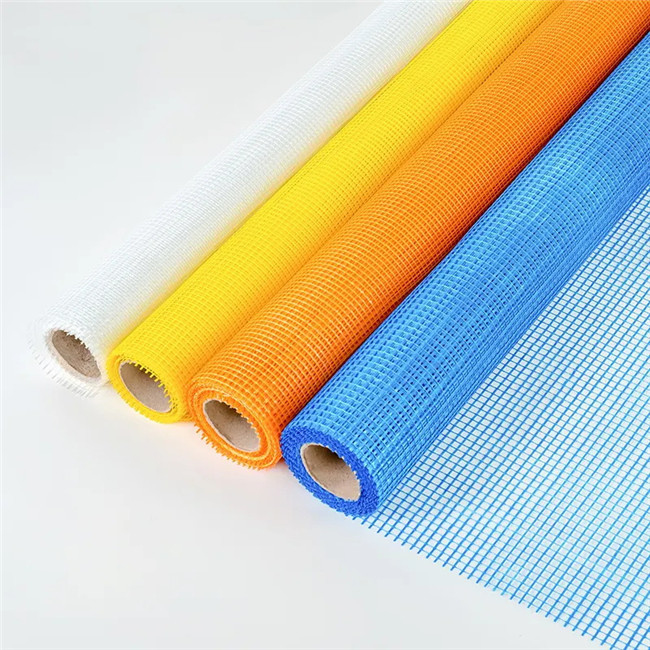

Construction Stone Reinforcement Alkali Resistant Fiberglass mesh
Fiberglass Mesh Introduction:
Fiberglass mesh is on the basis of alkali-resistant or C-glass or E-Glass woven fabric, then coated by acrylic acid copolymer liquid, possesses the properties of good alkaline-resistance, high strength, excellent alkali and acid resistance, good cohesion,excellent in coating etc.
| NO. | Main Specifications | Mesh size (mm) | Yarn density (tex) | Mass g/m2 | Tensile strength N/5X20cm | |||
| warp | weft | warp | weft | warp | weft | |||
| 1 | 4×4-75g/m2 | 4 | 4 | 48/2 | 200 | 75±3 | 700 | 850 |
| 2 | 4×4-145g/m2 | 4 | 4 | 134/2 | 240 | 145±5 | 1500 | 1500 |
| 3 | 4×4-160g/m2 | 4 | 4 | 134/2 | 300 | 160±5 | 1500 | 1650 |
| 4 | 4×5-110g/m2 | 4 | 5 | 100/2 | 360 | 110±5 | 1100 | 1200 |
| 5 | 4×5-145g/m2 | 4 | 5 | 134/2 | 300 | 145±5 | 1400 | 1400 |
| 6 | 4×5-160g/m2 | 4 | 5 | 134/2 | 360 | 160±5 | 1500 | 1600 |
| 7 | 5×5-125g/m2 | 5 | 5 | 100/2 | 340 | 125±5 | 1100 | 1300 |
| 8 | 5×5-145g/m2 | 5 | 5 | 134/2 | 360 | 145±5 | 1450 | 1600 |
| 9 | 5×5-160g/m2 | 5 | 5 | 134/2 | 430 | 160±5 | 1500 | 1700 |
| 10 | 10×10-90g/m2 | 10 | 10 | 200/2 | 300 | 90±3 | 900 | 1200 |
| 11 | 10×10-110g/m2 | 10 | 10 | 250/2 | 450 | 110±5 | 1000 | 1400 |
Application:
1. 75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
2. 110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
3. 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).
4. 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.
RFQ:
1. What is your MOQ?
Our MOQ is usually 500rolls.But we accept lower quantity for your trial order. Please feel free to inform us your plan for purchasing, we will offer the price correspond to your qty. And we hope your would increase your order qty after you check our product quality and know our services.
2. What is the shipping port?
We ship the goods via Tianjin or Qingdao port.
3. How many colors are available?
We can do custom color when reach our MOQ qty.
Our regular colors are white, yellow, green, blue, orange, red etc
4. What format of the file do you need if I want to do my own design?
For printing label design, we need AI or PDF file for set up the print-plate.
5. What is your delivery time?
The time of delivery is about 15days after we receive the deposit.
6. What is your sample time?
Usually we will take 3 days to make the samples.
