Product Details:
Payment & Shipping Terms:
|
| Product Name: | 160g Alkali Resistant Concrete Fiberglass Wall Plaster Mesh Net Roll Fiberglass Mesh Fabric | Yarn Type: | C-Glass,E-class Fiberglass Mesh |
|---|---|---|---|
| Length: | 20m~500m | Width: | 20cm-200cm |
| Mesh Size: | 4*4mm,5*5mm | Weight: | 75gsm-300gsm |
| Alkali Content: | Medium,Alkali Free | Weave Type: | Plain Woven,Twill Woven,Leno |
| Application: | Wall Materials,Heat Insulation Materials,Filter Mesh | Standing Temperature: | High Temperature |
| Feature: | Alkaline-resistant,Heat Resistant,strength,Alkali Resistant Fiberglass Mesh Fabric,Flexible Soft | Usage: | Wall Reinforced Material,building Material,Drywall Joint,repair Walls Cracks |
| High Light: | 160g fibreglass mesh roll,alkali resistant net fibreglass mesh roll,160 gsm fiberglass mesh fabric |
||

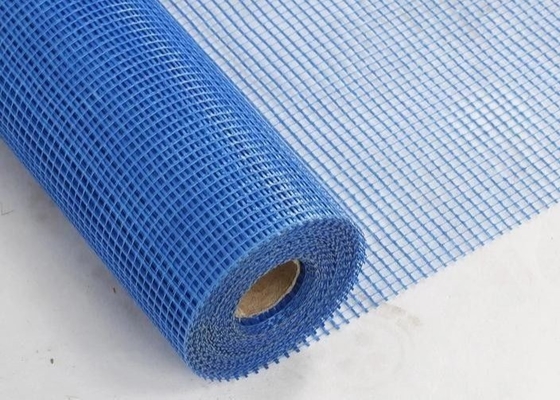

160g Alkali Resistant Concrete Fiberglass Wall Plaster Mesh Net Roll Fiberglass Mesh Fabric
Fiberglass Mesh Fabric introduction
Fiberglass gridding cloth, Fiberglass heat Insulation mesh
Moq: 40000 square meters.
Colors: Red, black, yellow, green, white, blue, and so on,
Delivery time: 30days.
Logo and specification: Customized
Supply fiberglass mesh like strong or flexible mesh, soft or hard, fireproof, different colors and sizes: From 30G/M2 to 500G/M2.
ALKALINE RESISTANT FIBERGLASS MESH
Alkaline-resistant fiberglass mesh is woven with fiberglass yarn as its basis mesh and then coated by alkaline-resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, gypsum, and so on.
We can produce any size mesh according to the requirements of customers like different mesh sizes and weights per square meter.
Fiberglass Mesh Fabric size
| No. | Model of Raw Yarn | Mesh(mm) | Mesh(mesh/inch) | Weight(g/m2) | Fracture Strength(N/50MM) | ||||
| Warp | Woof | Warp | Woof | Wrap | Woof | Warp | Woof | ||
| 1 | 50 | 204 | 5 | 5 | 5 | 5 | 70± 3 | 700 | 800 |
| 2 | 50 | 306 | 5 | 5 | 5 | 5 | 90± 3 | 700 | 900 |
| 3 | 100 | 330 | 5 | 5 | 5 | 5 | 125± 3 | 1100 | 1300 |
| 4 | 134 | 330 | 5 | 5 | 5 | 5 | 145± 5 | 1500 | 1500 |
| 5 | 134 | 408 | 5 | 5 | 5 | 5 | 160± 5 | 1500 | 1650 |
| 6 | 50 | 204 | 4 | 5 | 5 | 6 | 75± 3 | 750 | 750 |
| 7 | 50 | 255 | 4 | 5 | 5 | 6 | 90± 3 | 750 | 750 |
| 8 | 100 | 255 | 4 | 5 | 5 | 6 | 110± 3 | 1200 | 1100 |
| 9 | 100 | 306 | 4 | 5 | 5 | 6 | 125± 3 | 1200 | 1200 |
| 10 | 134 | 330 | 4 | 5 | 5 | 6 | 145± 5 | 1500 | 1500 |
| 11 | 134 | 380 | 4 | 5 | 5 | 6 | 165± 5 | 1500 | 1500 |
| 12 | 50 | 204 | 4 | 4 | 6 | 6 | 70± 3 | 750 | 750 |
| 13 | 50 | 306 | 4 | 4 | 6 | 6 | 90± 3 | 750 | 850 |
| 14 | 100 | 300 | 4 | 4 | 6 | 6 | 120± 3 | 1200 | 1200 |
| 15 | 134 | 330 | 4 | 4 | 6 | 6 | 150± 5 | 1500 | 1500 |
| 16 | 134 | 350 | 4 | 4 | 6 | 6 | 165± 5 | 1500 | 1500 |
| 19 | 204 | 610 | 12 | 12 | 2 | 2 | 110± 3 | 1000 | 1000 |
Fiberglass Mesh Fabric characteristics
- Coated with acrylic-acid copolymer liquid, these products have a flat and clean surface, a rich sense of touch, and excellent position-fixation
- These products are acid-resistant, alkali-resistant, and anti-aging. Softness and color can be made according to customers' requirements.
- The quality of products is stable through the seasons. The products are shrink-wrapped, and their color and quality will not change after the products are stored for 6 months.
Fiberglass Mesh is widely used in reinforcing light wallboard, internal and external wall, building component, and plaster products; besides, they can also be stuck on the back of mosaic, marble, and other stone materials of superior quality. They are the most ideal building materials for reinforcement and are widely used during the innovation process of building materials for external walls.
Plaster mesh is used on the outer and inner sides of the buildings where sheathing is required.
At the same time, it is used as reinforcing carrier material in plaster mesh floor and ceiling insulation, insulation created against hot and cold climatic conditions.
Reinforcing walls
Natural marble
Plasterboard
Artificial stone materials and exterior insulation finishing system.
Fiberglass Mesh Fabric loading
