Product Details:
Payment & Shipping Terms:
|
| Product Name: | Beautiful Looking Euro Fence Rolled Top Fence For Gated Community Guard House | Application: | Fence Mesh,building,garden Fence |
|---|---|---|---|
| Surface Treatment: | Pre Galvanized + PVC Coated Pre Galvanized + Powder Coated | Hole Shape: | Rectangle |
| Material: | Low Carbon Steel Wire | Color: | RAL6005,RAL9005,RAL9010 |
| Panel Height: | 830mm,1030mm,1230mm,1530mm,1830mm,2030mm,2230mm,2530mm | Panel Width: | 2.0m,2.25m,2.5m,3.0m |
| Wire Diameter: | 4mm,4.5mm,5mm,5.5mm,6mm | Packing: | Pallet,in Bulk |
| High Light: | ral6005 rolled top fence,4mm rolled top fence,ral6005 roll top fencing |
||

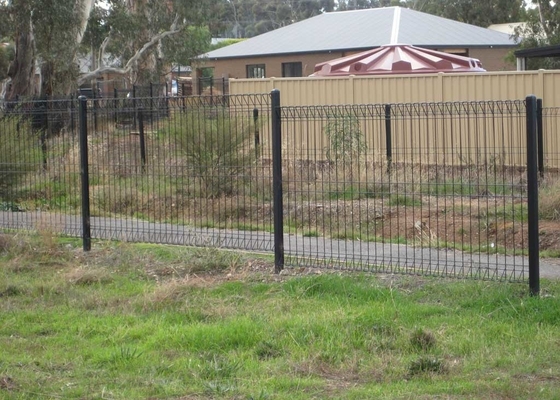

Roll top fence, also called BRC fence, incorporates user friendly top and bottom "trigonal" edges to give enhanced safety and rigidity to the fencing. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration. The structure of this fence is different with the other series, Both the top and the bottom sides have a triangle fold, in this way the barbed edge will be hidden in side, All the surface faced to people around is smooth, so it will avoid the accidental injury.The surface treated by hot dipped galvanized or polyester powder coated.
Installation is simple and easy. They come complete with panels, posts, post caps, U-clips, bolts and nuts in either hot dip galvanized and or powder coated in colors. Steel posts are pre-drilled and ready for assembly on site. For fence height more than 2.4 m, we suggest “Multi-lift erection system” where one or more panels are placed on top of the bottom panel.
With these features and benefits, Roll top Weld fence is preferred for residential, commercial and governmental projects. Whether you are a home owner, business owner, architect, contractor or developer, Roll top weld fence offer substance, style and peace of mind.
1. Wire diameter: 5mm,4mm,3mm
2. Mesh size: 50x200mm
3. Height x Length: 2.03x2.5m,1.53x2.5m
4. Square post: 60x60x1.5x2400mm
|
Wire mesh Fence panel
|
Panel Height | 600mm-3000mm |
| Panel Width | 2000mm-3000mm | |
| Wire Diameter | 3mm-6mm | |
| Hole opening | 50x50mm,50x100mm,50x150mm,50x200 mm, 65x200mm | |
| Material | low carbon steel wire, galvanized wire | |
| Surface treatment | electric galvanized, hot dipped galvanized, powder coated and PVC coated | |
| Curve | type and quantity on customer request | |
|
Wire mesh Fence post
|
Square Post | 40x60x2mm or 40x60x1.5 mm,60x60x2mm,60x80x2mm,80x80x2mm |
| Peace Post | 100x70mmx1.2mm | |
| Post height | according to fence panel height, (Normal 0.65-4m) | |
| Finish | hot dipped galvanizing,powder coated | |
| Accessories | post cap, clamps, bolts and nuts | |
| Wire Mesh Fence Color | Any RAL Series color(Normal RAL 6005 Dark green, RAL 9005 Black) | |
Road and transit ( highway, railway, road, city transit )
Science & Industry Zone ( factory, industry zone, sightseeing zone, new pattern farm )
Private grounds ( courtyard, villa )
Public grounds ( park, zoo, train or bus station, lawn )
Commercial grounds ( corporation, hotel, supermarket )
1. Suitable where safety is a consideration
2. Aesthetic appearance
3. High rigidity
4. Excellent through vision
5. Wide range of colour options
6. Available as a complete system
1. Best after-sale service, customer can follow their order situation at any time, no matter production line, warehouse or shipment.
2. More than 6 years experience in export to handle your order more smoothly.
3. Less than one container loading is accepted.
4. Installation, maintenance and repair instructions with full information.
5. Loading the goods, we will track all the way, to ensure product safety, quick to arrive at the designated ports.
6. Arrival of the goods, we will provide installation instructions and subsequent technical guidance.
