Payment & Shipping Terms:
|Other Name:||Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing||Color:||Black Color|
|Advantage:||Long-Term Rust-Proof||Finished:||Powered Coated|
|Top Style:||Flat Top, Spear Top||Sample:||Available|
|Size:||2.1x2.4m||Horizontal Rails:||40x40mmx1.6mm(thickness)and 2 Rails|
|Vertical Rails:||25x25mmx1.2mm(thickness)and 17 Rails||Accessory:||Bracket, Rain Hat ,bolts And Nuts|
2100mm height steel tubular fencing,
spear top steel tubular fencing,
2100mm height two rail fencing

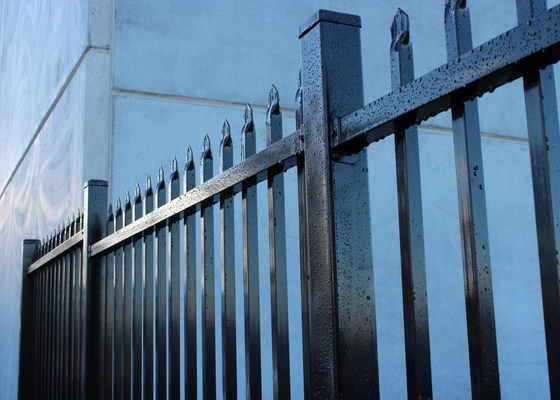

Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing
Brief introduction of Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing:
Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing is a great solution when you need high protection fencing without giving the appearance of entrapment or imprisonment. Increasingly popular, wrought iron fence will add value to your property,while offering a very high level of protection.
Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing provide added protection from invaders attempting to climb over your fence.Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing prevent anyone trying to gain access by cutting a part of the fence.
Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing are manufactured using the industry’s highest-strength rails. Pickets feature "true" sizing, and feature full galvanization, without unprotected seams. The picket shape within the high-strength rails prevent rattle or removal, and allow for racking of 48" per 8-foot panel - equal to or greater than any comparable fence product.
Typical applications for Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing:
1. Technology Parks
2. High-voltage switchyards and sub-stations
4. Protecting critical assets
6. Sea ports
Characters of Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing :
Horizontal pipe, vertical pipe and column three parts are different specifications of the steel tube, two layers anticorrosive processing, good anti-corrosion performance, service life is long, after electrostatic spraying, can amount to 15 years, and to save the cost product maintenance updates.
Specification of Long-Term Rust-Proof Black Color 2 Rails Steel Tubular Fencing :
|Panel Configuration||Vertical pickets are inserted through punched rails with each picket welded at the top and bottom, of both the top and bottom rails.|
|Picket profile||25*25*1.2mm Square Hollow Section(SHS).|
|Picket spacing||140mm centre-to-centre of each vertical picket.|
|Picket top profile||Crimped(round) spear top.|
|Panel brackets||1-piece heavy duty,hot dipped galvanised security bracket(for brackets per panel).|
|Fasteners||Tamper proof Irius Tek screws|
|Intermediate posts||65*65*2.5mm post(3000mm long)|
|Gate frame||Stiles and Rails 65*65*1.6mm SHS(three horizontal rails)|
|Gate locking hardware||
Heavy duty ∅20mm slide-bolt with Broadhurst Lockbox,The slide-bolt is lockable in both the open and closed positions.
Heavy duty ∅16mm slide-bolt (pad lockable).
Perforated mesh welded to the outside of the gate preventing the gate hardware being used as climbing points.
Greasable tapered roller bearing(bottom) and sealed ball bearing hinging(top)
With ability to swing 180°.
100*100*4mm(3000mm long) for openings up to 3000mm.
150*150*5mm(3000mm long) for openings greater than 3000mm.
|Post cap||Steel caps(powder coated)|
|Weld type||All welds are Silicon bronze which has superior corrosion resistance to a standard mild steel weld.|
|Zinc coating||Pre-galvanised precision tube with a zinc coating mass of 275g/m²across the internal and external surfaces of the hollow steel tube.|
|Higher corrosion environments||We would recommend the use of our zinc-rich epoxy primer under the top coat to give much greater corrosion resistance.|
Fence posts ∅300mm*900mm deep using 20mpa concrete
Gate posts ∅450mm*900mm deep using 20mpa concrete
