Product Details:
Payment & Shipping Terms:
|
| Color: | Silver, Green, White, Black | Mesh Size: | 40x40mm, 50*50mm, 65*65mm, 70x70mm |
|---|---|---|---|
| Diameter Of Chain Link Fence Prices: | Usually The Wire Is 1.2mm~5.0mm | Heights Chain Link Fence Prices: | 4' , 5' , 6' , 8', 10', 12' |
| Lengths: | Common Is 1.0m-50m Or As Your Requirments | Usage: | For Residential, Industrail & Commercial Sites |
| Finish: | Hot Dipped Galvantized Or Powder Coated | Application: | Sports Field, Park, Garden, Green Filed, Parking Filed |
| High Light: | ISO-2001 Steel Chain Link Fencing,3.65m high Steel Chain Link Fencing,3.65m high metal chain link gate |
||

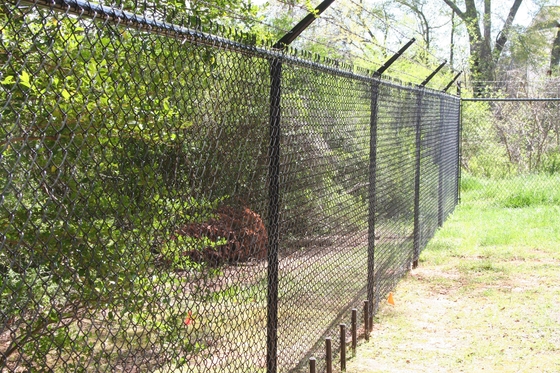

Factory 3.65mm galvanized wire PVC coated wire Chain link fence
Secure perimeters are necessary for industrial and commercial areas to prevent unauthorised access. Chain link fencing is one of the most widely used on the market. Its strength and durability make it an excellent medium security option.
Specification of Chain Link Fence
| Chain link fence | |||
| Wire Gauge | Width | Length | |
| 1″ | BWG11,12,13,14 | 0.5-4m | 5-25m |
| 1.5″ | BWG8,9,10,11,12,13 | 0.5-4m | 5-25m |
| 2″ | BWG8,9,10,11,12 | 0.5-4m | 5-25m |
| 2.5″ | BWG8,9,10,11,12 | 0.5-4m | 5-25m |
| 2.25″ | BWG8,9,10,11,12 | 0.5-4m | 5-25m |
| 2.375″ | BWG8,9,10,11,12 | 0.5-4m | 5-25m |
| 3″ | BWG8,9,10,12 | 0.5-4m | 5-25m |
Chain link fence weaving and characteristic
a.Details of Galvanized Chain Link Fence
| mesh (mm) | wire guage (SWG) | Wire Diameter (mm) | Weight Kg/m2 | Coil Diameter | |
| (cm) | |||||
| Natural volume | Fold volume | ||||
| 200*200 | 8 | 4.06 | 1 | 60 | 35 |
| 150*150 | 10 | 3.25 | 0.9 | 55 | 32 |
| 100*100 | 9 | 3.66 | 1.7 | 55 | 35 |
| 80*80 | 10 | 3.25 | 1.68 | 57 | 38 |
| 60*60 | 12 | 2.64 | 1.5 | 52 | 34 |
| 50*50 | 12 | 2.64 | 1.83 | 49 | 33 |
| 40*40 | 10 | 3.25 | 3.56 | 46 | 32 |
| 30*30 | 12 | 2.64 | 3.25 | 42 | 34 |
| 20*20 | 19 | 1.02 | 0.7 | 25 | 34 |
(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)
b.Details of PVC Coated Chain Link Fence
| mesh (mm) | wire guage (SWG) | Wire Diameter (mm) | Weight Kg/m2 | Coil Diameter | |
| (cm) | |||||
| Natural volume | Fold volume | ||||
| 80×80 | 8 | 3.0/4.06 | 1.72 | 65 | 40 |
| 60×60 | 9 | 2.6/3.66 | 1.75 | 59 | 38 |
| 55×55 | 10 | 2.2/3.25 | 1.38 | 54 | 35 |
| 50×50 | 10 | 2.2/3.25 | 1.67 | 49 | 35 |
| 45×45 | 8 | 3.0/4.0 | 3.2 | 50 | 35 |
| 40×40 | 10 | 2.2/3.25 | 2 | 45 | 34 |
| 35×35 | 12 | 2.0/2.64 | 1.9 | 40 | 30 |
The accessories of Chain link fence
Chain link fence application
Production process
Packing and delivery
