| Name: | Safety High Quality 1.8 Height Garden Fencing 6 Foot Wrought Iron Fence | Material: | Iron Pipe |
|---|---|---|---|
| Width: | 8ft,10ft | Height: | 4ft,5ft,6ft,7ft,8ft |
| Horizontal Pipe: | 1-1/2”Sq. 1-3/4”Sq. | Picket: | 5/8”Sq. 3/4”Sq 1”Sq. |
| Usage: | Fencing | Thickness: | 19ga. 18ga. 16ga. 14ga. |
| Surface Treatment: | Hot Dip Galvanized, Powder Coated | MOQ: | 50pcs |
| Keywords: | Fence, Ornamental Fence, Security Fence,steel Fence, Metal Fence | Type: | Fencing,Trellis & Gates,assemble,Welded |
| Frame Finishing: | Powder Coated,PVC Coated,galvanized+polyester Coated,painted,hot Dipped Galvanized | Application: | Residential,School,Fence Mesh,etc |
| Sample: | Available | Feature: | Easily Assembled,Waterproof,Eco Friendly,Rot Proof,Rodent Proof |
| High Light: | 1.8m height wrought iron fence,waterproof wrought iron fence,1.8m height iron garden fence |
||

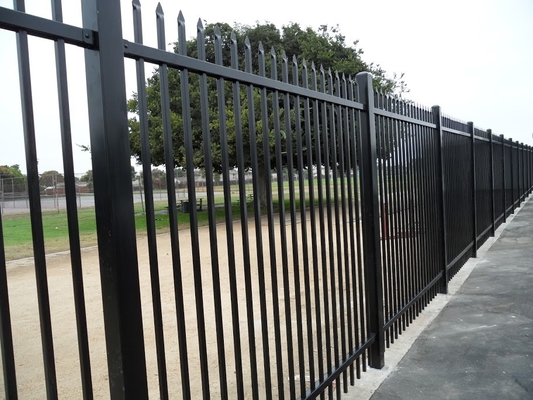

Safety High Quality 1.8 Height Garden Fencing 6 Foot Wrought Iron Fence
Wrought Iron Fence Introduction
Material: Hot dip galvanized steel pipe
Rails: 1 1/4"x.080" thick
Pickets: 3/4"sq x.060" thick
Picket Spacing: 3 13/16" (in between pickets)
Post Spacing: 72 1/2" on center
Available Heights: 48", 54", 60" & 72"
60" Height Meets B.O.C.A. Pool Code (Flush Bottom Rail)
Available Widths: 72" & 96"
Available Colors: Black, White & Bronze
Sections Can Rack 30" Over a 6' section
TGIC Polyester Powder Coating
Stainless Steel Colored Head Screws
All Sections Are Shipped Assembled
Wrought Iron Fence POST:
Post Lengths
Wrought Iron Fence Specification
| System | Pickets | Rails | Posts |
|
Residential Lite
|
5/8”Sq. x 19ga. 16 x 16 x 1.0mm |
1-3/8”Sq. x 18ga. 35 x 35 x 1.2mm |
2”Sq. x 16ga. (up to & including 6’ tall fence) 50 x 50 x 1.5mm (up to & including 1829mm tall fence) |
|
Commercial Lite
|
3/4”Sq. x 18ga. 19 x 19 x 1.2mm
|
1-1/2”Sq. x 16ga.
38 x 38 x 1.5mm
|
2”Sq. x 16ga. (up to & including 6’ tall fence) 50 x 50 x 1.5mm (up to & including 1829mm tall fence)
2.5”Sq. x 14ga. (up to & including 8’ tall fence) 63.5 x 63.5 x 2.0mm (up to & including 2438mm tall fence) |
|
Industrial Lite
|
1”Sq. x 16ga. 25 x 25 x1.5mm
|
1-3/4”Sq. x 14ga. 45 x 45 x 2.0mm |
3”Sq. x 12ga. (6’tall up to & including 10’ tall fence) 75 x75 x 2.5mm (1829mm tall up to & including 3048mm tall fence) |
|
Commercial Plus
|
3/4”Sq. x 16ga. 19 x 19 x 1.5mm
|
1-1/2”Sq. x 14ga. 38 x 38 x 2.0mm
|
2.5”Sq. x 12ga. (up to & including 8’ tall fence) 63.5 x 63.5 x 2.5mm (up to & including 2438mm tall fence) |
|
Industrial Plus
|
1”Sq. x 14ga. 25 x 25 x 2.0mm
|
1-3/4”Sq. x 14ga. 45 x 45 x 2.0mm |
3”Sq. x 12ga. (6’tall up to & including 10’ tall fence) 75 x 75 x 2.5mm (1829mm tall up to & including 3048mm tall fence) |
|
High Security Plus (45° & 90° Curve)
|
1”Sq. x 14ga. 25 x 25 x 2.0mm
|
1-3/4”Sq. x 14ga. 45 x 45 x 2.0mm |
3”Sq. x 12ga. (6’ tall up to & including 10’ tall fence) 75 x 75 x 2.5mm (1829mm tall up to & including 3048mm tall fence) |
Wrought Iron Fence Manufacture:
Wrought Iron Fence Main types:
Wrought Iron Fence Gate design:
Wrought Iron Fence Accessories:
Wrought Iron Fence Packing:
More design:
